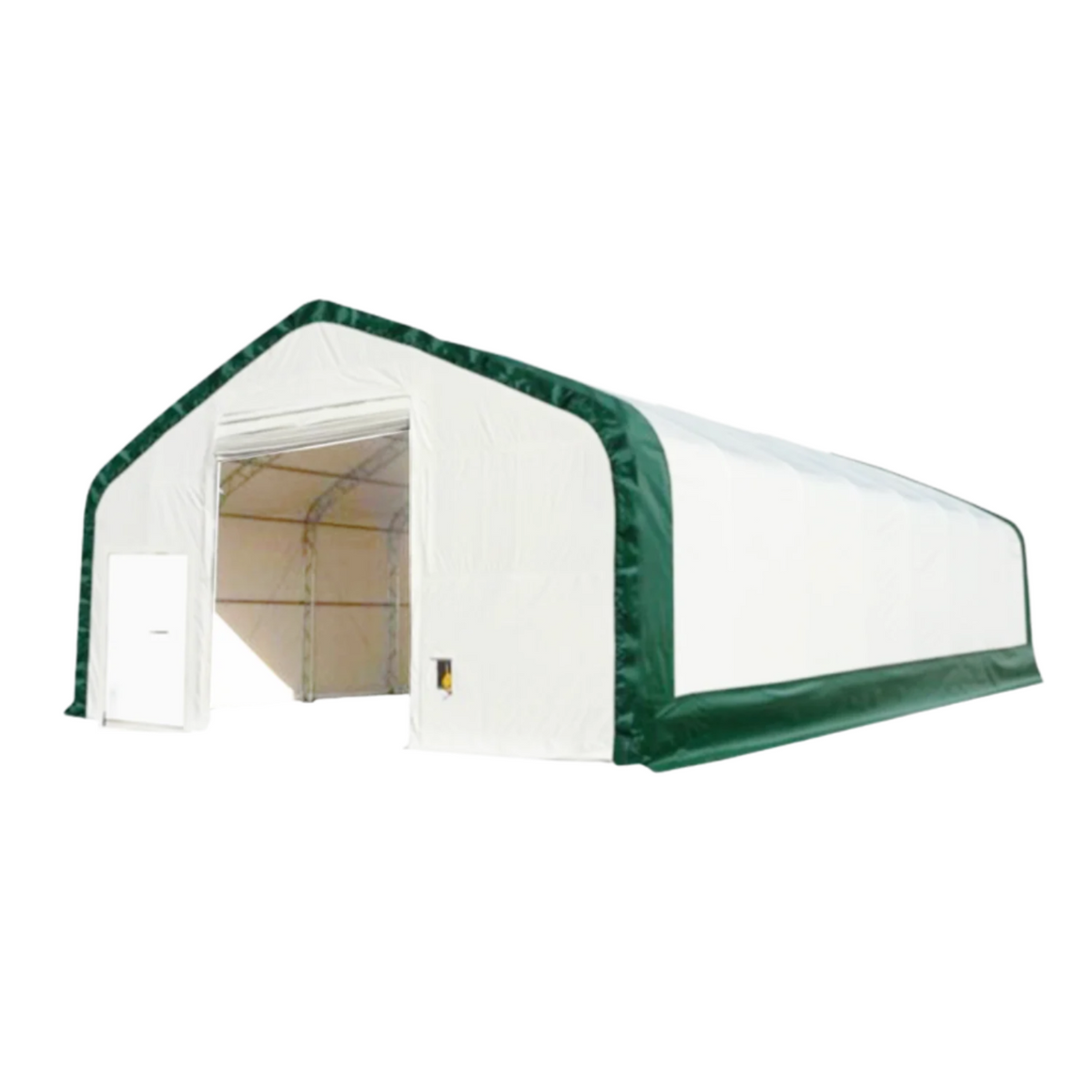

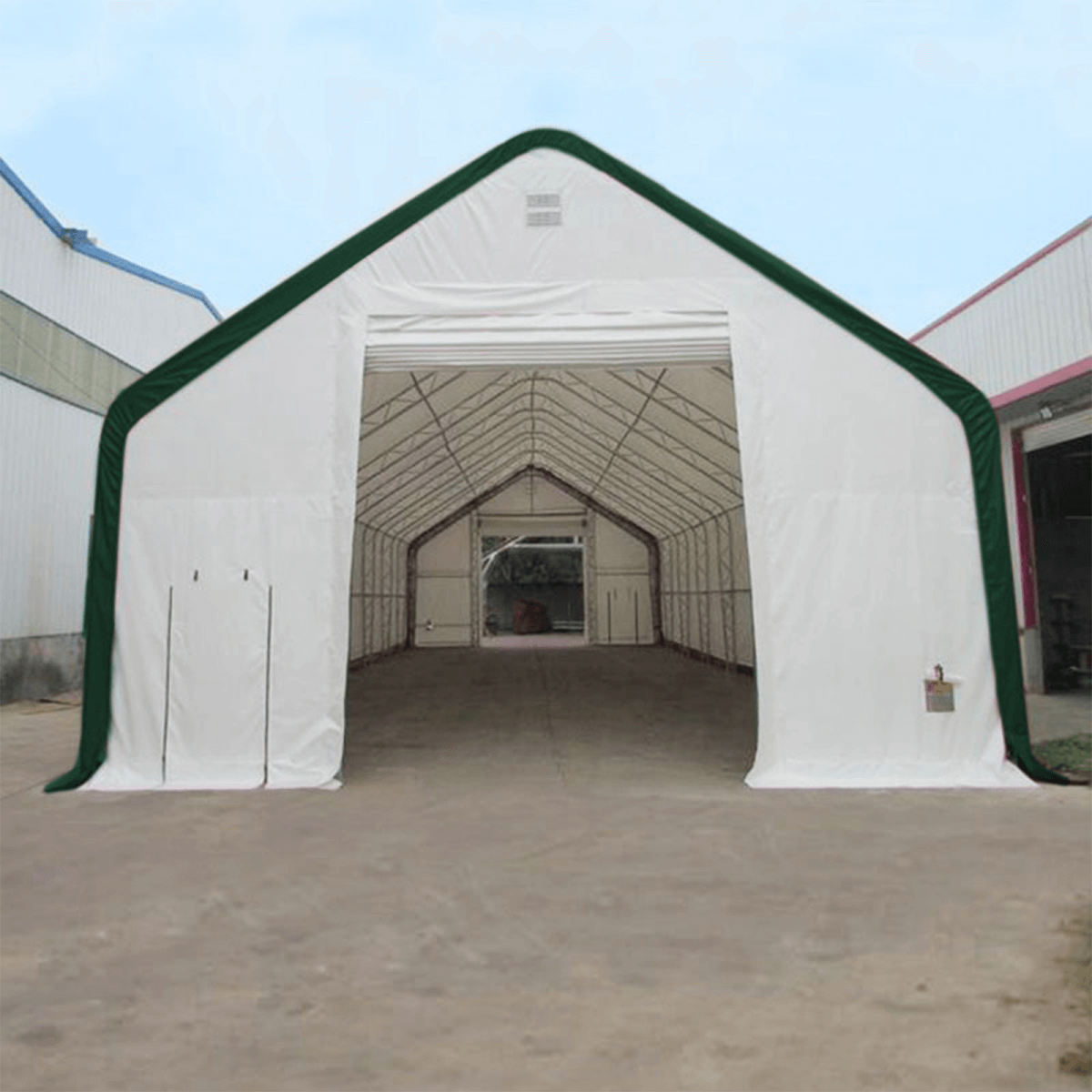

Protect valuable equipment, machinery, vehicles, and commercial supplies with the Gold Mountain 40' x 64' Double Truss Storage Shelter.
Engineered with a reinforced double-truss galvanized steel frame, peaked roof design, and large mechanical roll-up doors, this shelter provides substantial covered storage space for agricultural, construction, industrial, and commercial applications.
Measuring 40 feet wide, 64 feet long, and 23 feet high, the structure offers approximately 2,560 square feet of covered ground area.
With a manufacturer-listed 48 PSF snow-load rating and 60 MPH wind rating, this Gold Mountain shelter provides published structural specifications for customers evaluating large outdoor storage solutions.

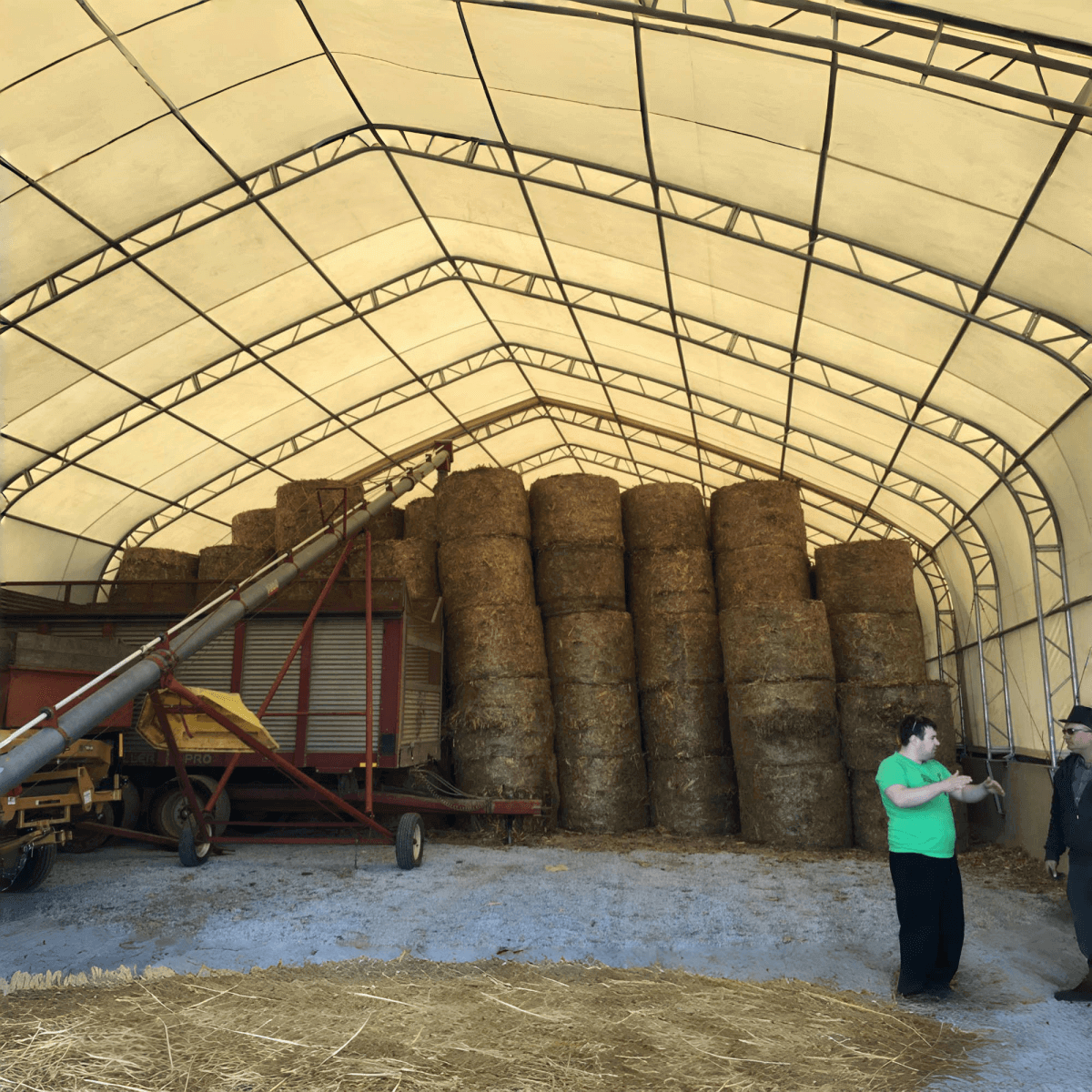

The generous 40' x 64' footprint provides room for compatible large equipment, vehicles, and commercial materials.
Potential applications include:
Agricultural tractors and machinery
Construction equipment and supplies
Commercial trucks and fleet vehicles
Landscaping and maintenance equipment
Industrial machinery
Seasonal inventory and materials
Agricultural supplies
Equipment staging and storage
Actual equipment compatibility depends on door openings, interior clearances, and the intended storage arrangement.

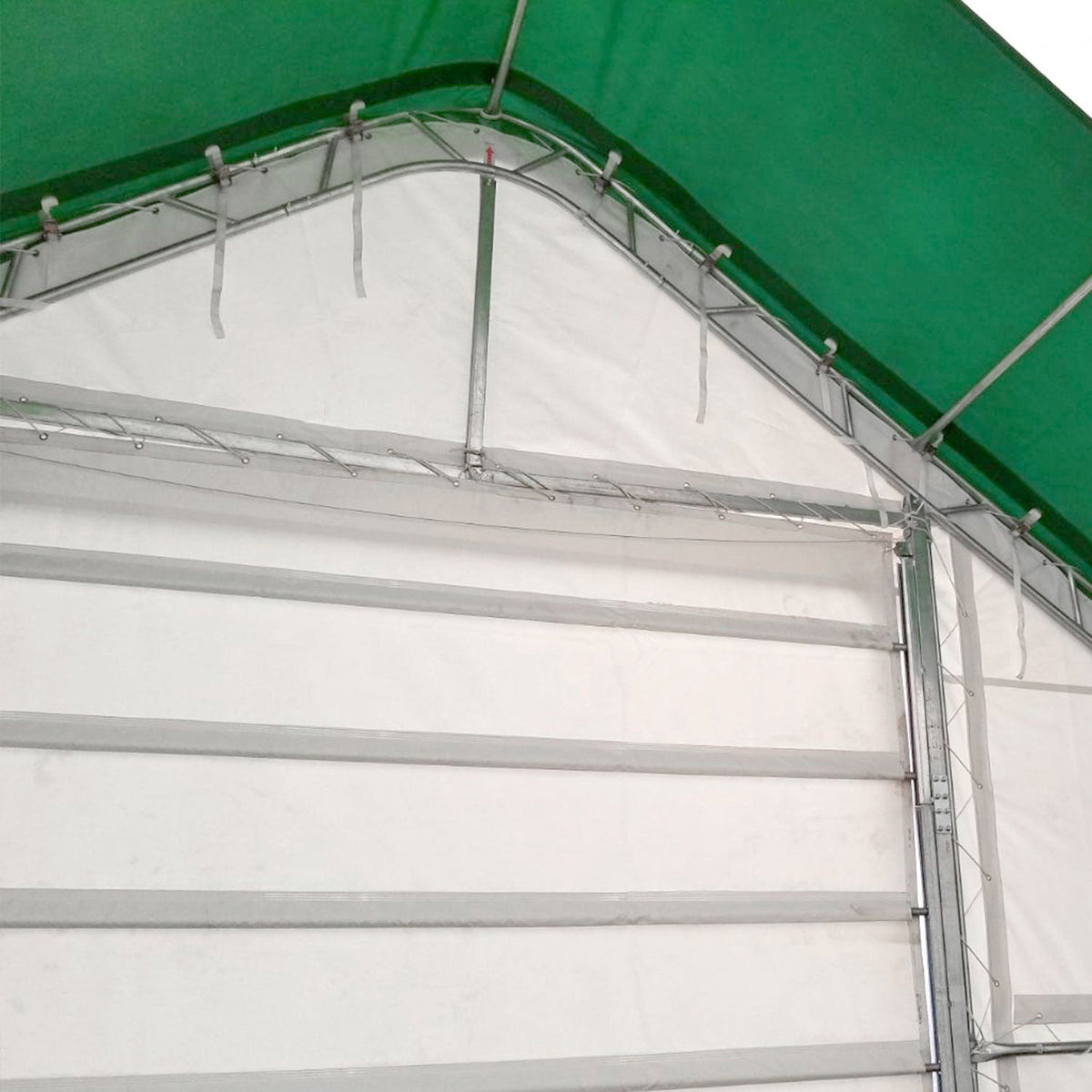

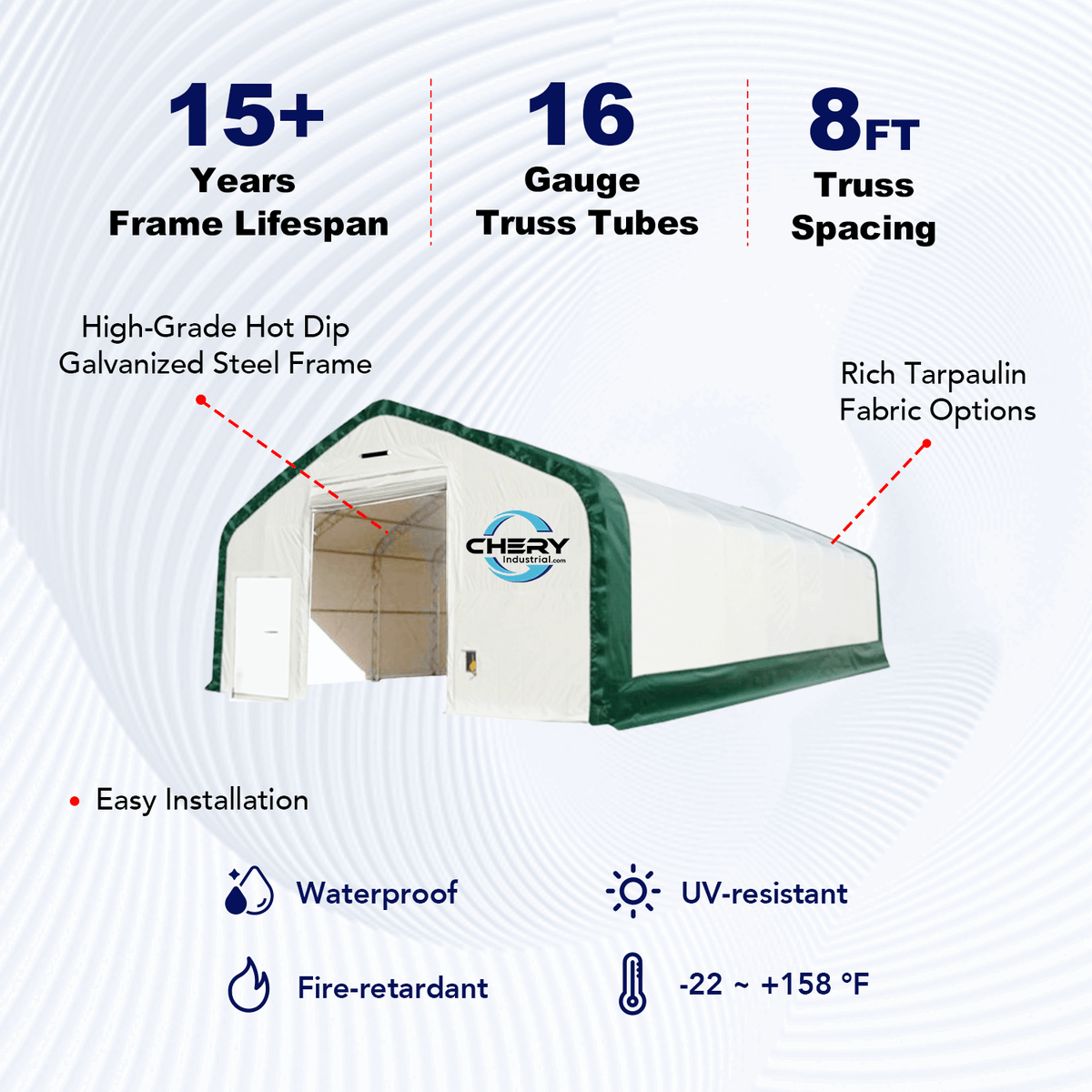

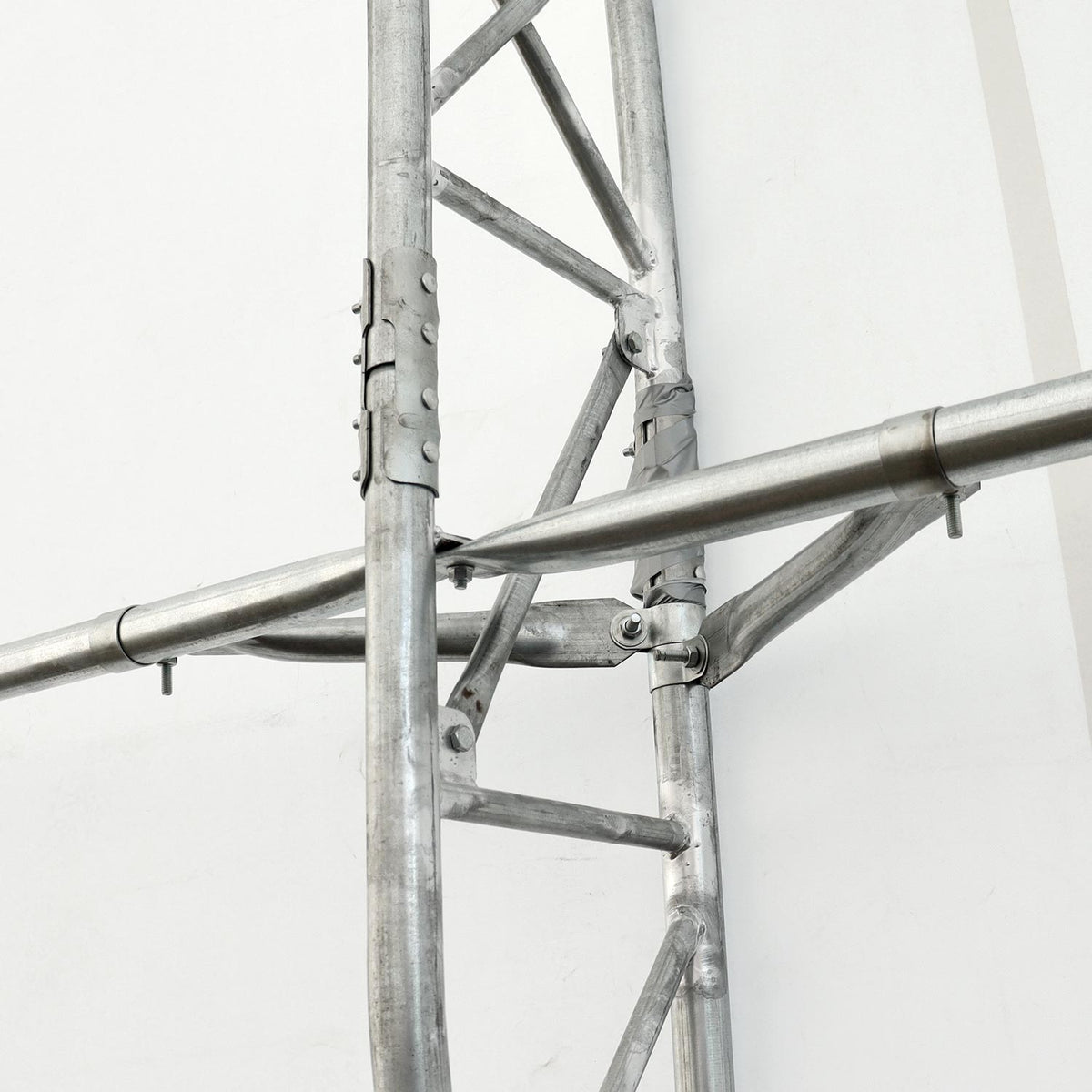

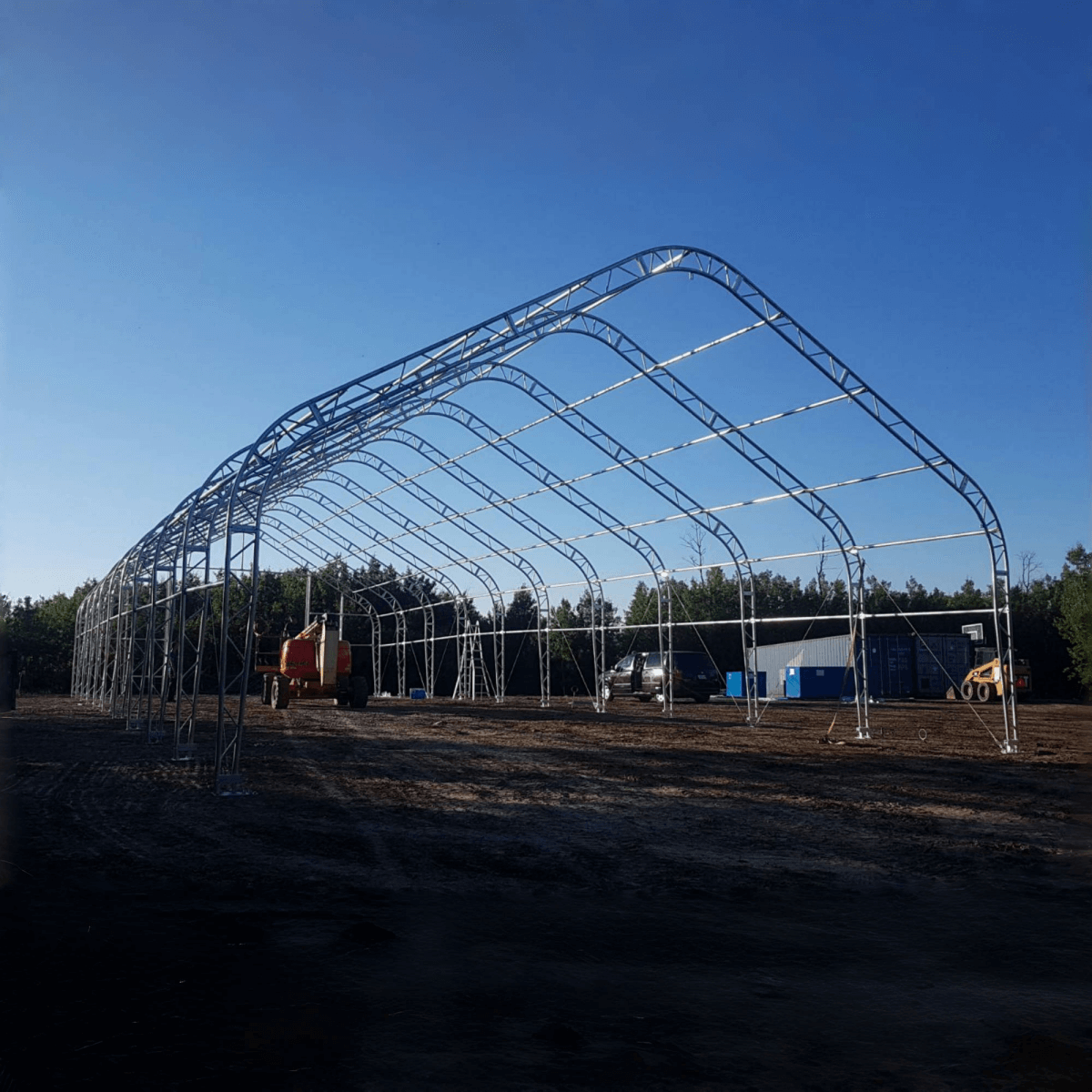

The shelter features a double-truss frame manufactured from hot-dip galvanized steel.
The manufacturer specifies 16-gauge truss tubing, with arch and purlin members measuring approximately 60mm x 1.5mm.

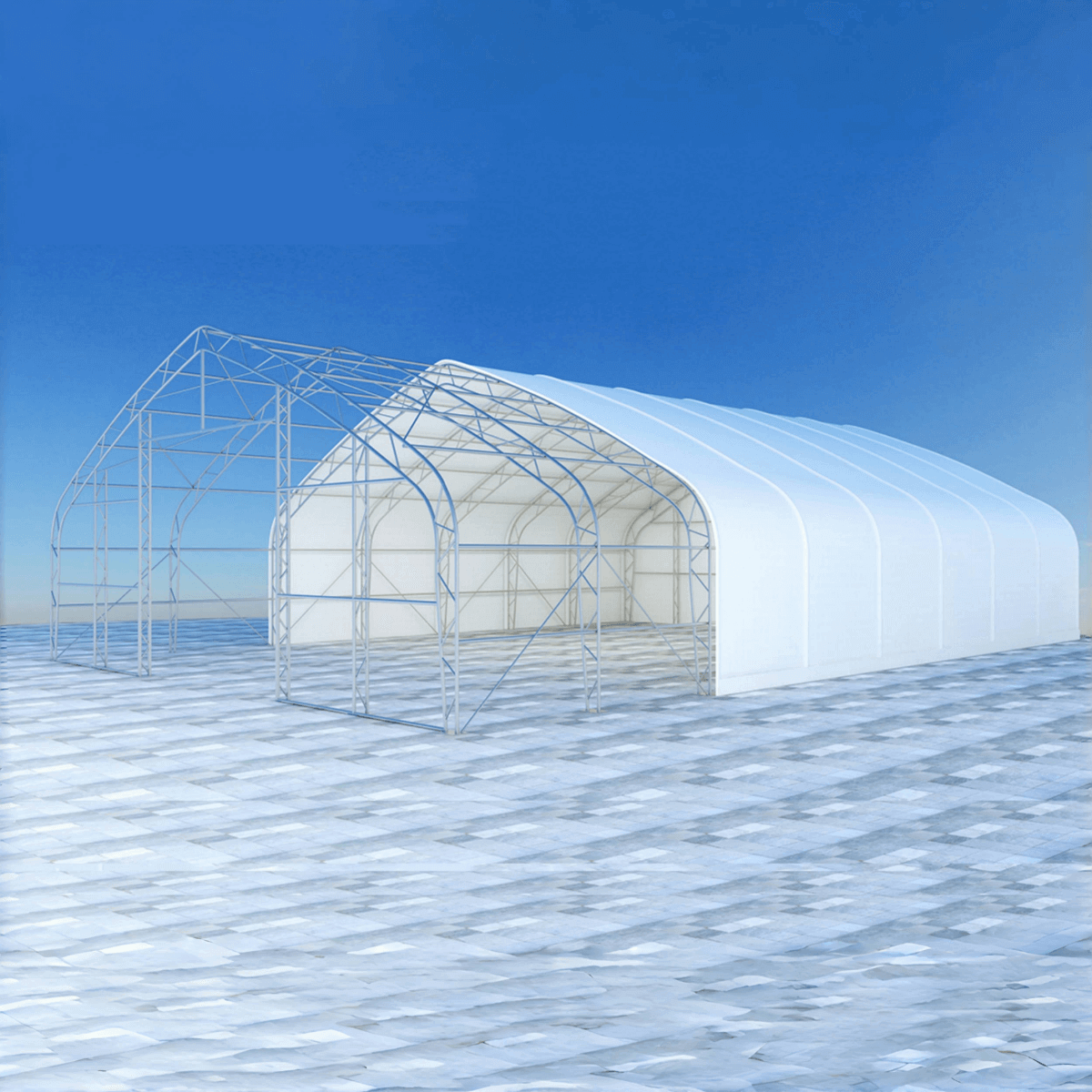

The structure incorporates nine arches spaced approximately eight feet apart, creating a reinforced framework for the fabric canopy.
Hot-dip galvanizing helps resist corrosion in outdoor environments, while the double-truss configuration provides additional structural reinforcement.
Proper installation, anchoring, and maintenance remain essential for safe performance.
The manufacturer lists a snow-load rating of 48 pounds per square foot (48 PSF).
The peaked roof design is intended to encourage snow to slide off the canopy more readily than flatter roof profiles.
However, snow can still accumulate under certain conditions.
Monitor accumulation and follow the manufacturer's snow-management and maintenance instructions.
The published rating should be evaluated alongside local design requirements, installation conditions, and the manufacturer's structural documentation.
The manufacturer lists a 60 MPH wind rating.
Actual wind performance depends on proper assembly, anchoring, foundation conditions, site exposure, and the manufacturer's applicable rating assumptions.
Before installation, verify that the structure's documented ratings meet local requirements.

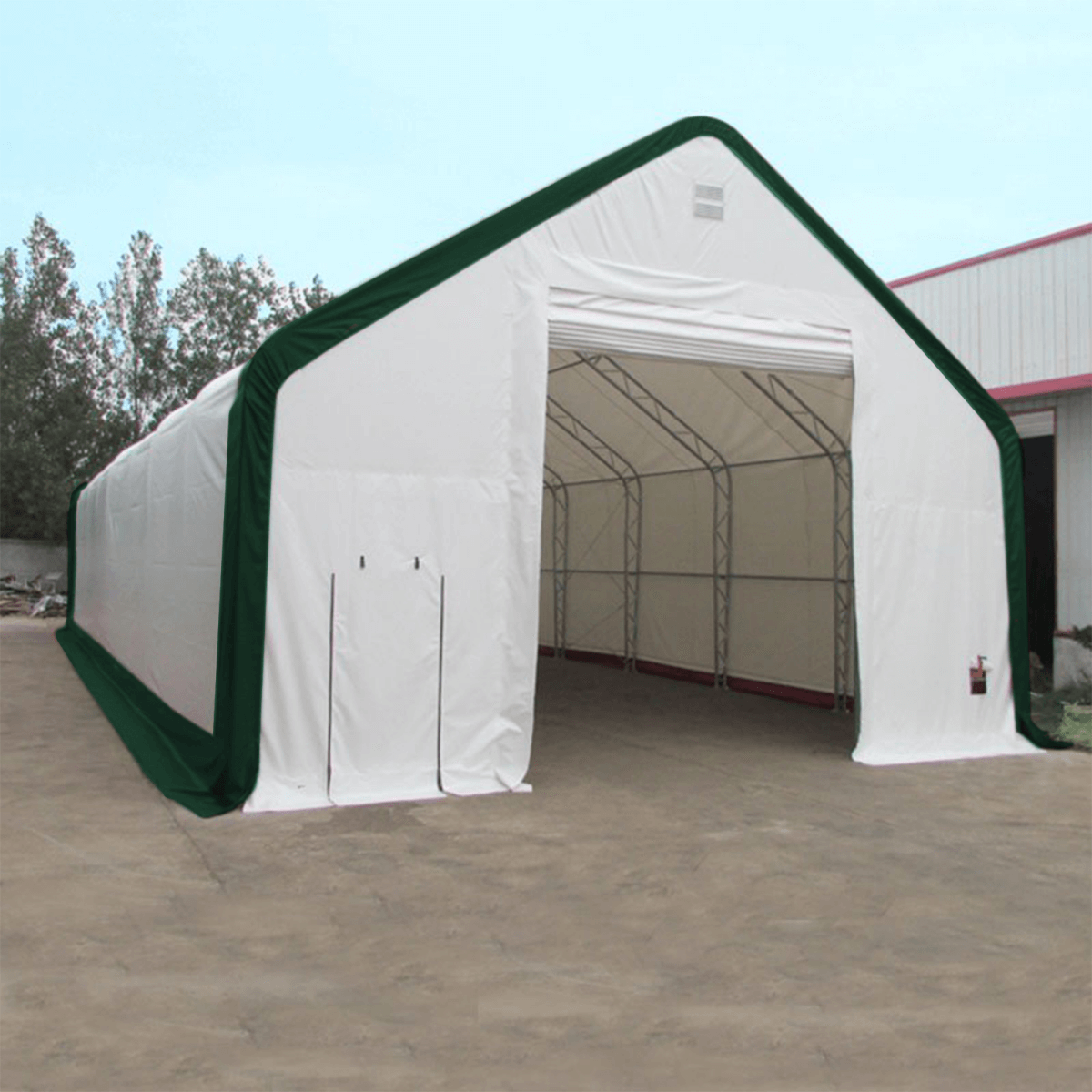

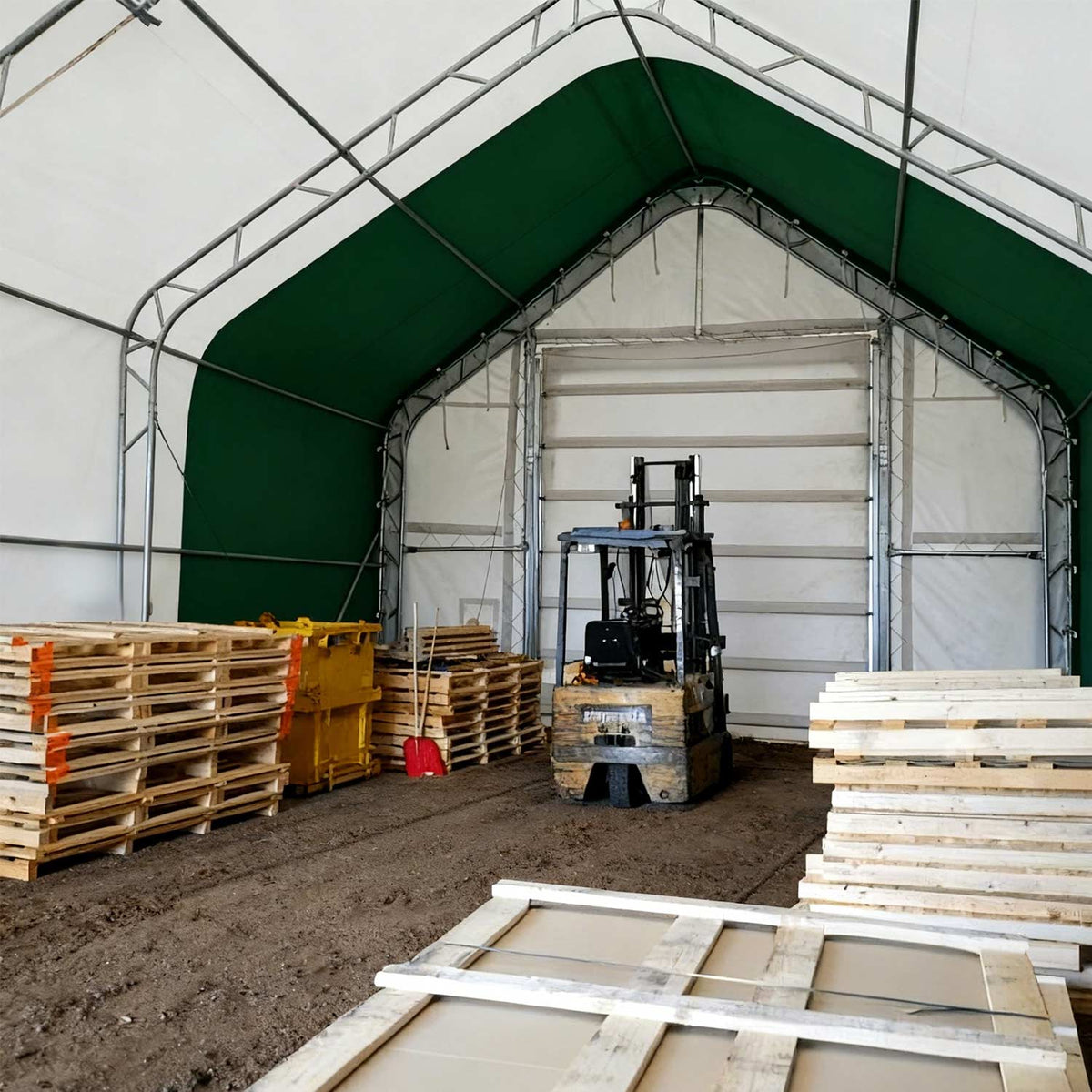

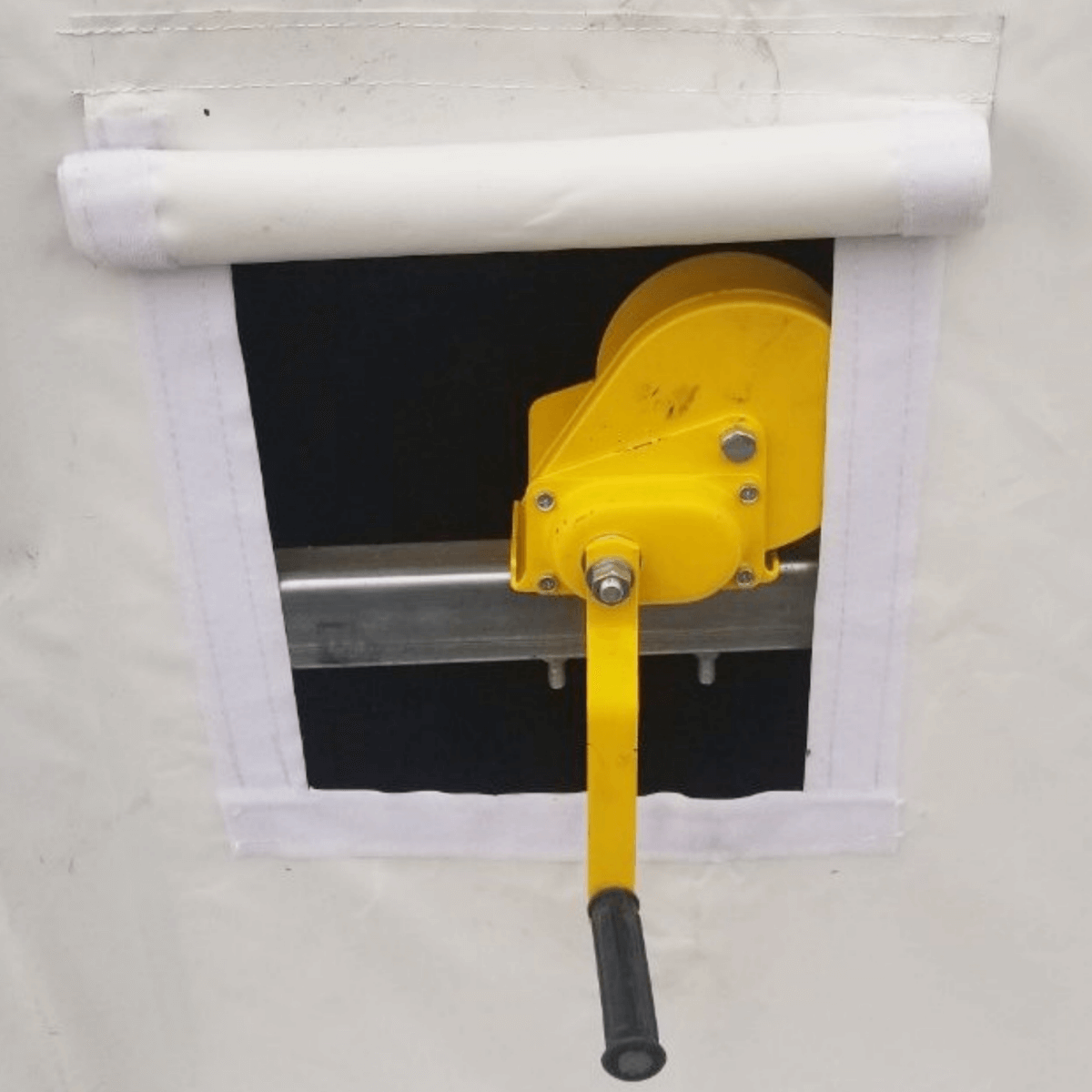

The shelter includes large mechanical roll-up doors at both ends.
Each listed door opening measures approximately 18 feet wide by 14 feet high.
These wide openings provide convenient access for compatible commercial vehicles, machinery, and equipment.
The front-and-rear configuration also supports flexible movement through the covered storage area.
A separate personnel door measures approximately 2.6 feet wide by 6.6 feet high.
This entrance provides convenient everyday access without requiring the larger roll-up doors to be opened.
The combination of large equipment doors and a dedicated personnel entrance makes the shelter practical for frequently accessed commercial storage.

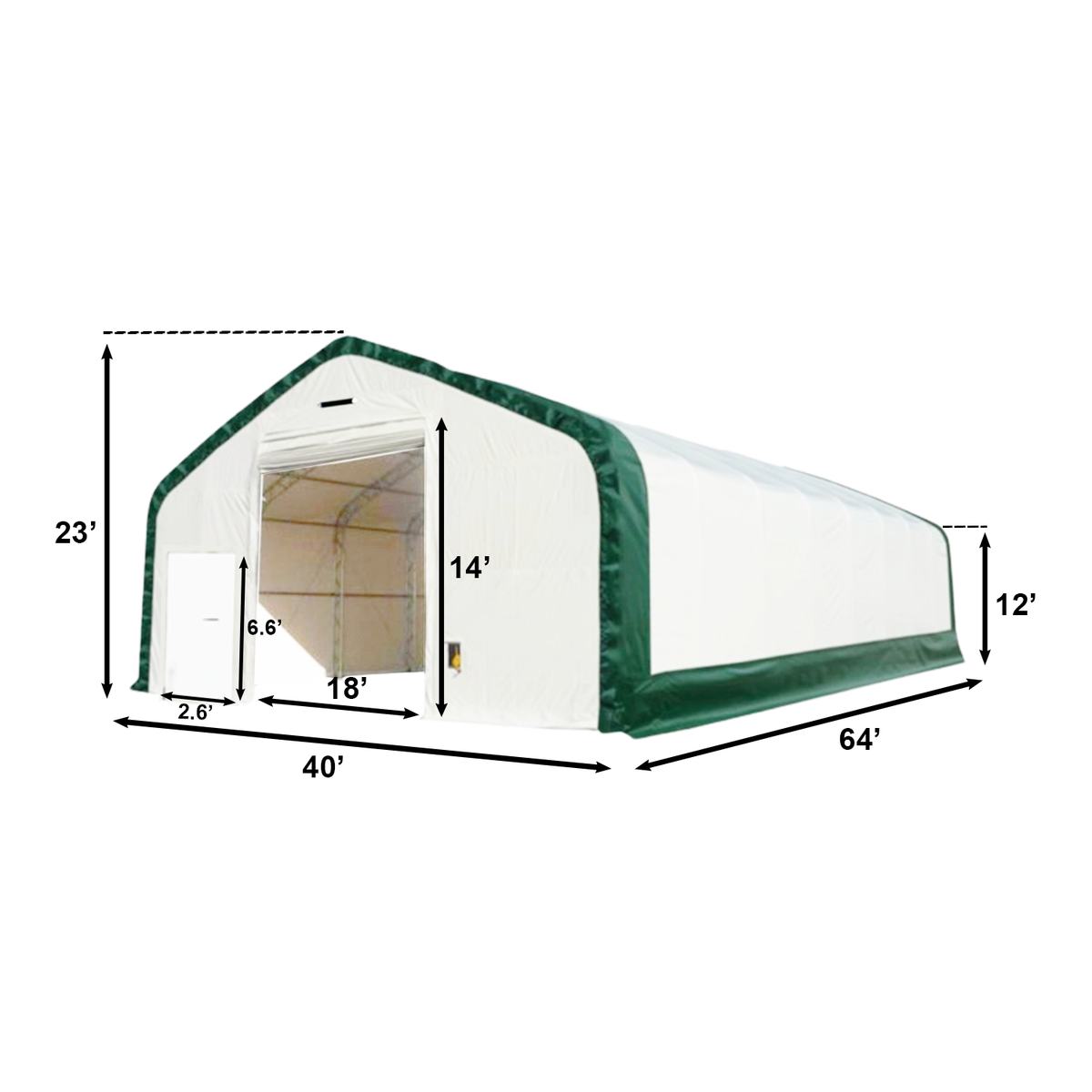

With an overall height of 23 feet and 12-foot sidewalls, the shelter provides substantial vertical space.
The peaked roof offers additional height toward the center of the structure.
This configuration is useful for customers storing compatible tall equipment, machinery, and commercial vehicles.
Always verify the manufacturer's clearance diagrams before ordering for oversized equipment.

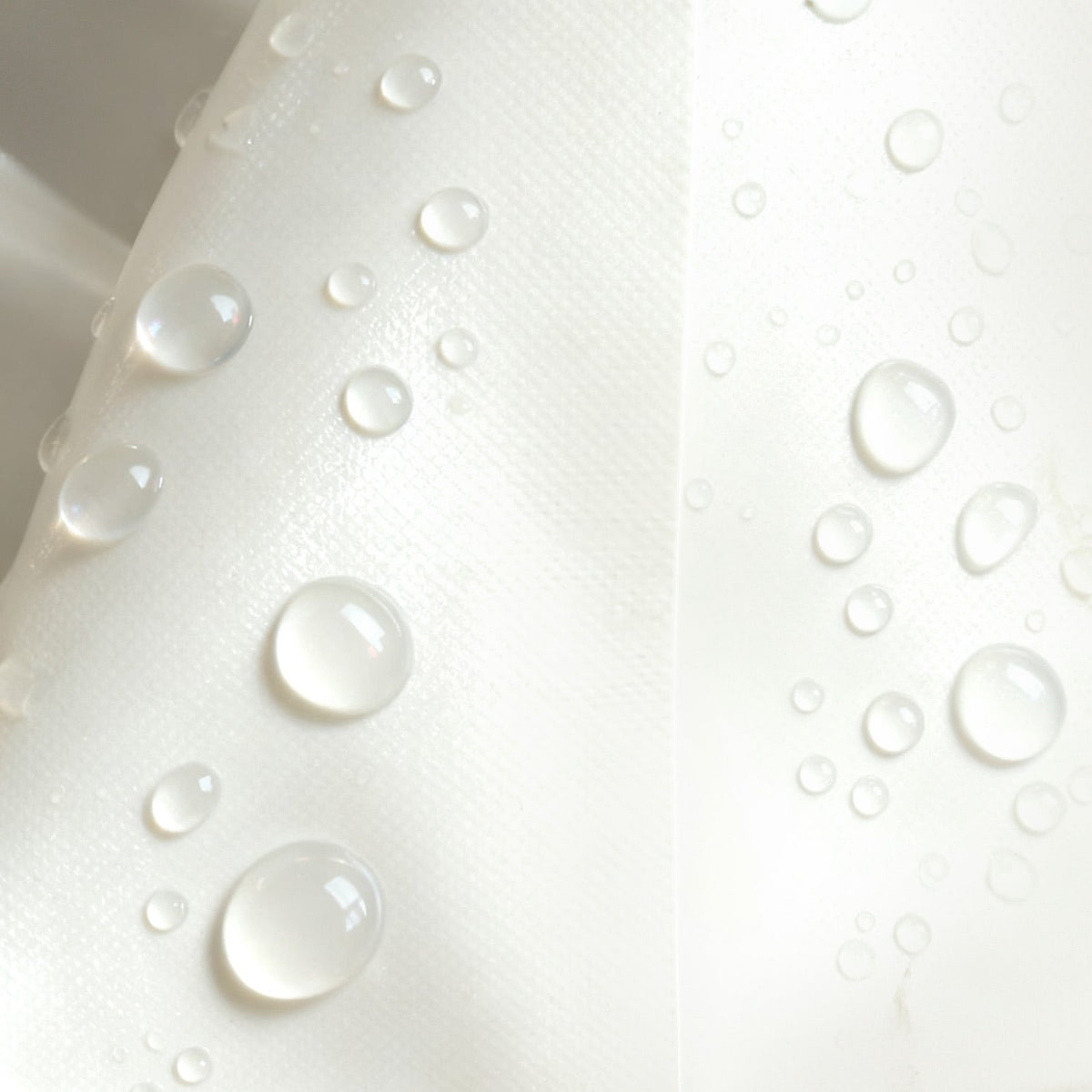

The Gold Mountain shelter is offered with multiple PE and PVC canopy material options.
The manufacturer lists:
11 oz/m² (300 gsm) PE tarpaulin
16 oz/m² (450 gsm) PVC tarpaulin
23 oz/m² (650 gsm) PVC tarpaulin
26 oz/m² (750 gsm) PVC tarpaulin
32 oz/m² (900 gsm) PVC tarpaulin
PVC canopy options are described by the manufacturer as stronger and more weather-resistant than the standard PE fabric.
The canopy provides overhead coverage from direct sunlight and precipitation while allowing some natural daylight into the structure.
The manufacturer estimates a 7–10 year fabric lifespan, depending on canopy selection, environmental exposure, and maintenance.
Confirm the exact fabric material and weight included with your purchase.

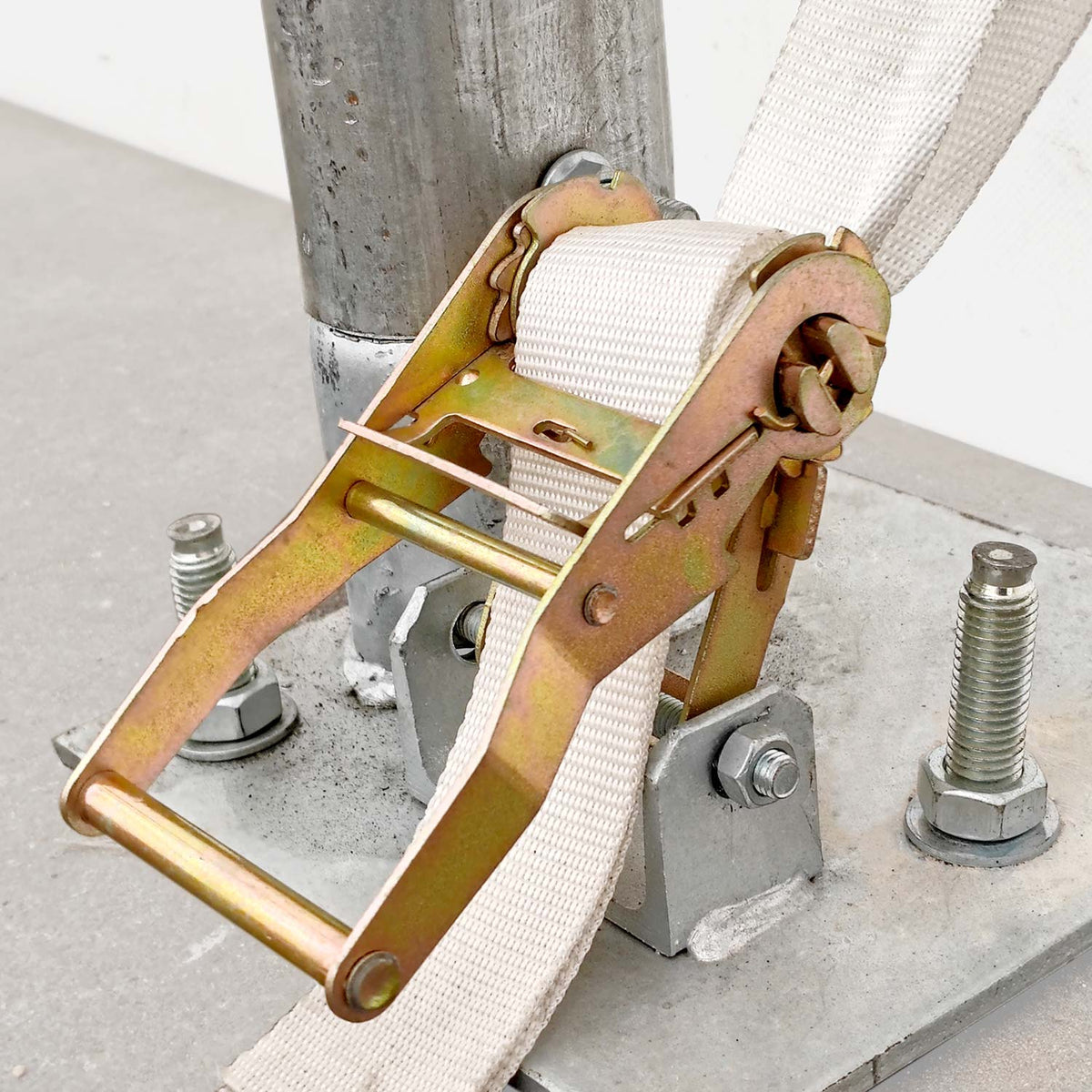

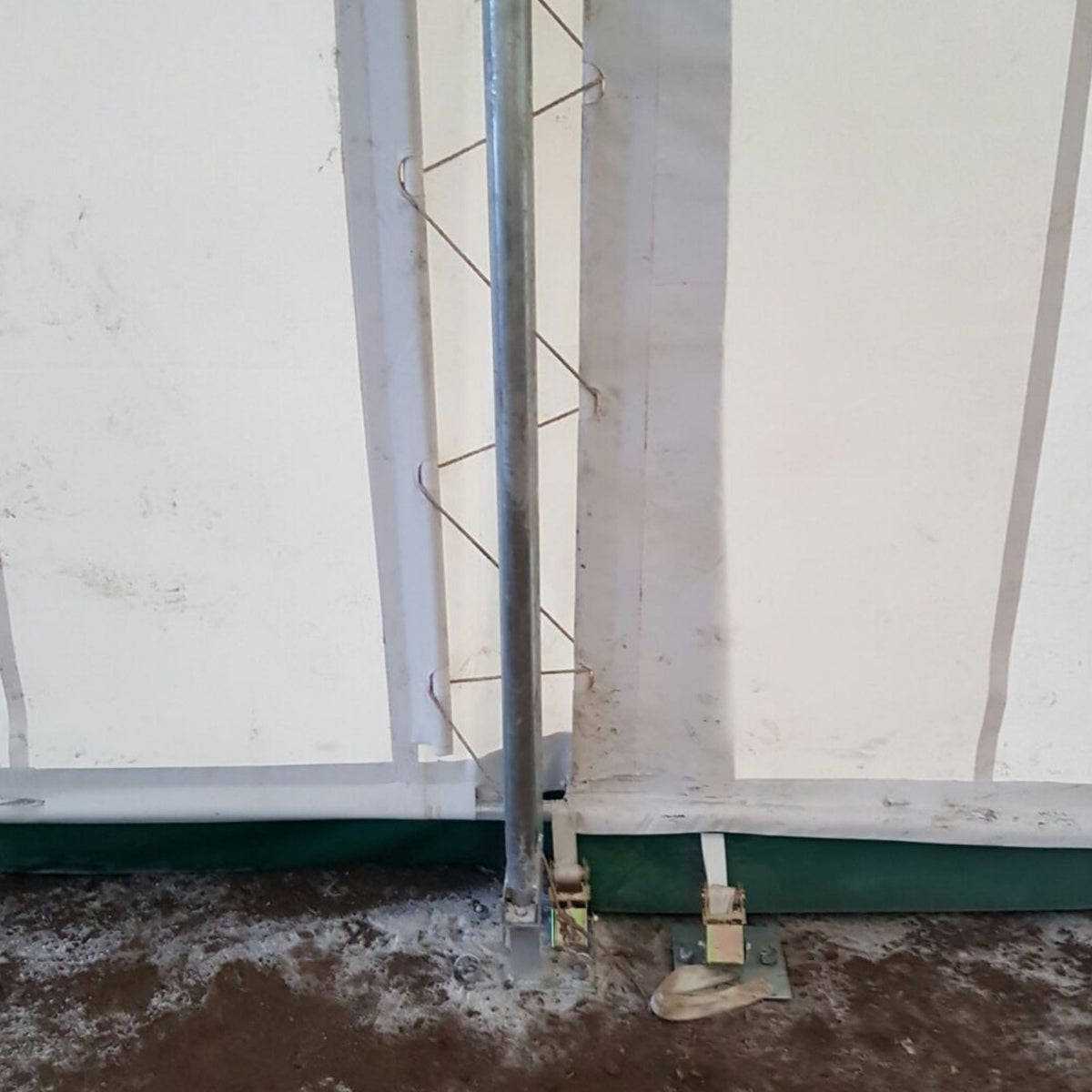

The shelter uses a pipe and ratchet tie-down system to maintain fabric tension.
Proper canopy tension helps preserve the roof profile and reduce areas where precipitation may collect.
The manufacturer recommends checking and retightening the canopy after installation and periodically as temperatures and environmental conditions change.

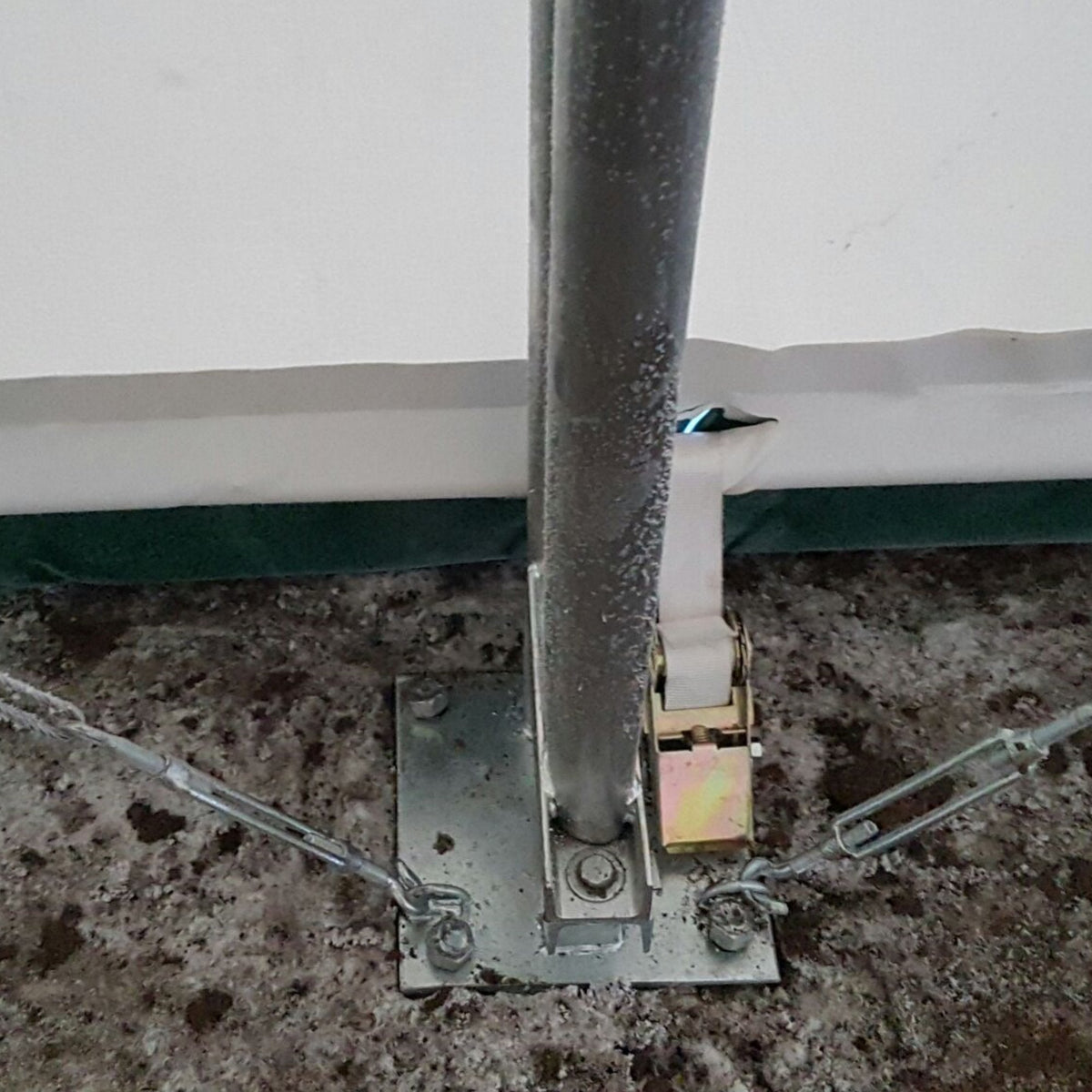

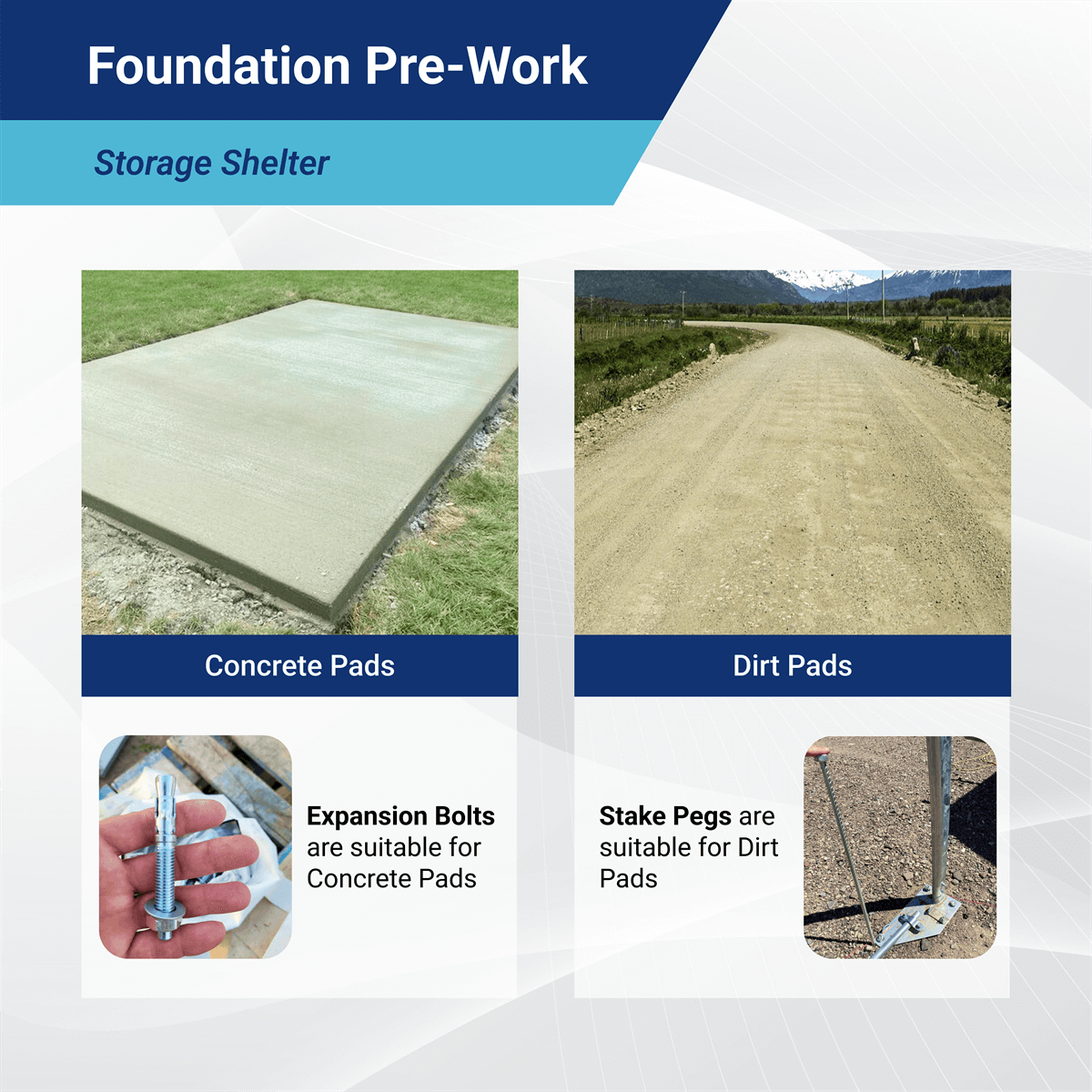

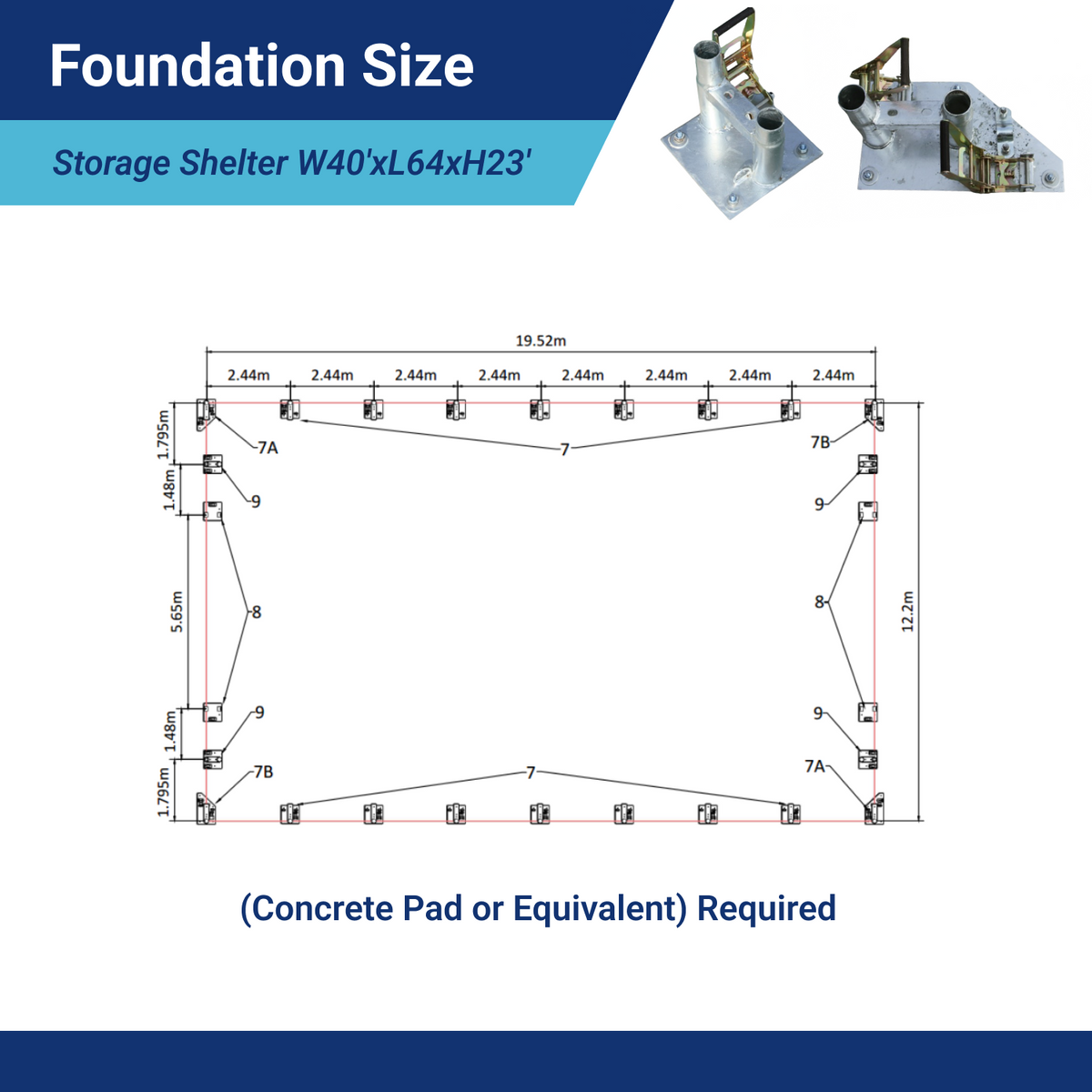

The shelter includes 18 anchor plates.
The manufacturer notes that expansion bolts now replace the previously supplied stake pegs.
Customers requiring stake pegs should contact customer service before ordering to arrange the appropriate anchoring option.

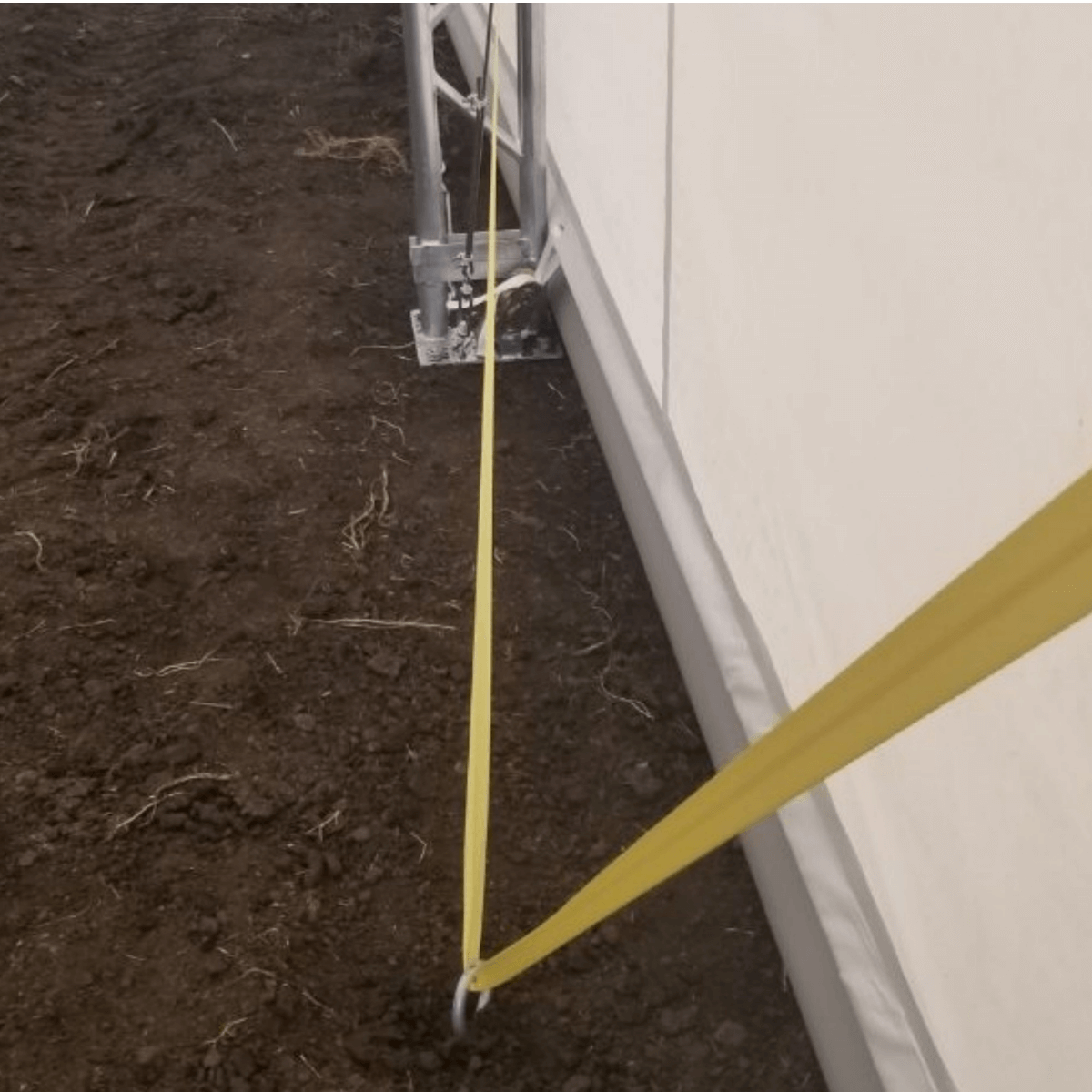

Foundation and anchoring requirements depend on the installation surface, local conditions, and the manufacturer's structural instructions.
Gold Mountain 40' x 64' double-truss storage shelter
Approximately 2,560 sq. ft. of covered storage
23-foot overall peak height
12-foot sidewall height
Hot-dip galvanized steel frame
16-gauge double-truss construction
Nine structural arches
Eight-foot arch spacing
Manufacturer-listed 48 PSF snow-load rating
Manufacturer-listed 60 MPH wind rating
Front and rear mechanical roll-up doors
18' W x 14' H equipment door openings
Separate personnel access door
PE and PVC canopy material options
Pipe and ratchet tensioning system
18 anchor plates
Manufacturer-estimated 15+ year frame lifespan
Commercial freight delivery
| Specification | Details |
|---|---|
| Brand | Gold Mountain |
| Product Type | Double Truss Storage Shelter |
| Width | 40 ft |
| Length | 64 ft |
| Overall Height | 23 ft |
| Covered Area | 2,560 sq. ft. |
| Sidewall Height | 12 ft |
| Frame Material | Hot-Dip Galvanized Steel |
| Truss Tubing | 16 Gauge |
| Arch Members | 60 x 1.5mm |
| Purlin Members | 60 x 1.5mm |
| Arch Spacing | 8 ft |
| Number of Arches | 9 |
| Equipment Door Type | Mechanical Roll-Up |
| Front & Rear Door Openings | 18' W x 14' H |
| Personnel Door | 2.6' W x 6.6' H |
| Snow Load | 48 PSF, Manufacturer-Listed |
| Wind Rating | 60 MPH, Manufacturer-Listed |
| Canopy Material | PE or PVC, Depending on Selection |
| Temperature Resistance | -22°F to 158°F, Manufacturer-Listed |
| Anchor Plates | 18 |
| Tensioning System | Pipe and Ratchet |
| Estimated Fabric Lifespan | 7–10 Years, Condition-Dependent |
| Estimated Frame Lifespan | 15+ Years, Manufacturer-Listed |
| Assembly Estimate | 4 People / Approximately 4 Days |
| Shipping Weight | 7,533 lbs |
| Country of Origin | China |
The manufacturer lists warranty periods based on canopy material:
PE Canopy: 2-Year Warranty
PVC Canopy: 8-Year Warranty
Coverage, exclusions, and eligibility are subject to the manufacturer's warranty terms.
This shelter ships as a large commercial freight item with a listed total shipping weight of approximately 7,533 lbs.
The manufacturer provides three package dimensions:
| Package | Dimensions |
|---|---|
| Box A | 124" L x 44" W x 46" H |
| Box B | 124" L x 44" W x 46" H |
| Box C | 98" L x 44" W x 35" H |
A forklift or equivalent unloading equipment is required.
The shipment may arrive by box truck or flatbed truck, depending on carrier arrangements.
Customers must ensure adequate delivery access and arrange appropriate unloading equipment before the shipment arrives.
The manufacturer estimates approximately four days of assembly with a four-person crew.
Assembly time may vary depending on site preparation, equipment availability, and installation experience.
Before installation, verify foundation requirements, anchoring specifications, local building codes, permits, and applicable environmental ratings.
Inspect the frame, anchors, doors, and canopy periodically.
Maintain proper canopy tension and manage snow accumulation according to the manufacturer's instructions.
The Gold Mountain 40' x 64' Double Truss Storage Shelter combines generous covered space, reinforced galvanized steel construction, and convenient equipment access.
With 2,560 square feet of coverage, two 18-foot-wide roll-up doors, a separate personnel entrance, and multiple canopy options, this shelter offers a flexible storage solution for agricultural, commercial, and industrial applications.
