Store solar energy, manage utility consumption, and choose the level of energy independence that fits your home with the LG RESU 16H Prime 16kWh High-Voltage Battery + Growatt Inverter Bundle.
At the center of both configurations is the LG RESU 16H Prime, providing 16kWh of usable battery capacity in a high-voltage architecture. Pair it with your choice of a Growatt 7.6kW grid-tie system for intelligent energy management or step up to the Growatt 11.4kW configuration with automatic transfer equipment for backup-power applications.
Two configurations.
Two different goals.
One scalable approach to residential energy storage.
Both packages are built around the LG RESU 16H Prime Battery.
The battery provides 16kWh of usable energy capacity and operates at approximately 400V, creating a high-voltage storage platform for compatible residential solar and energy-management systems.
An integrated battery-management system helps manage battery operation while the modular system architecture provides an upgrade path as household energy needs evolve.
The most important decision when ordering this bundle is determining what you want your battery system to accomplish.
Choose this configuration if your primary goal is solar self-consumption, time-of-use energy management, and export control.

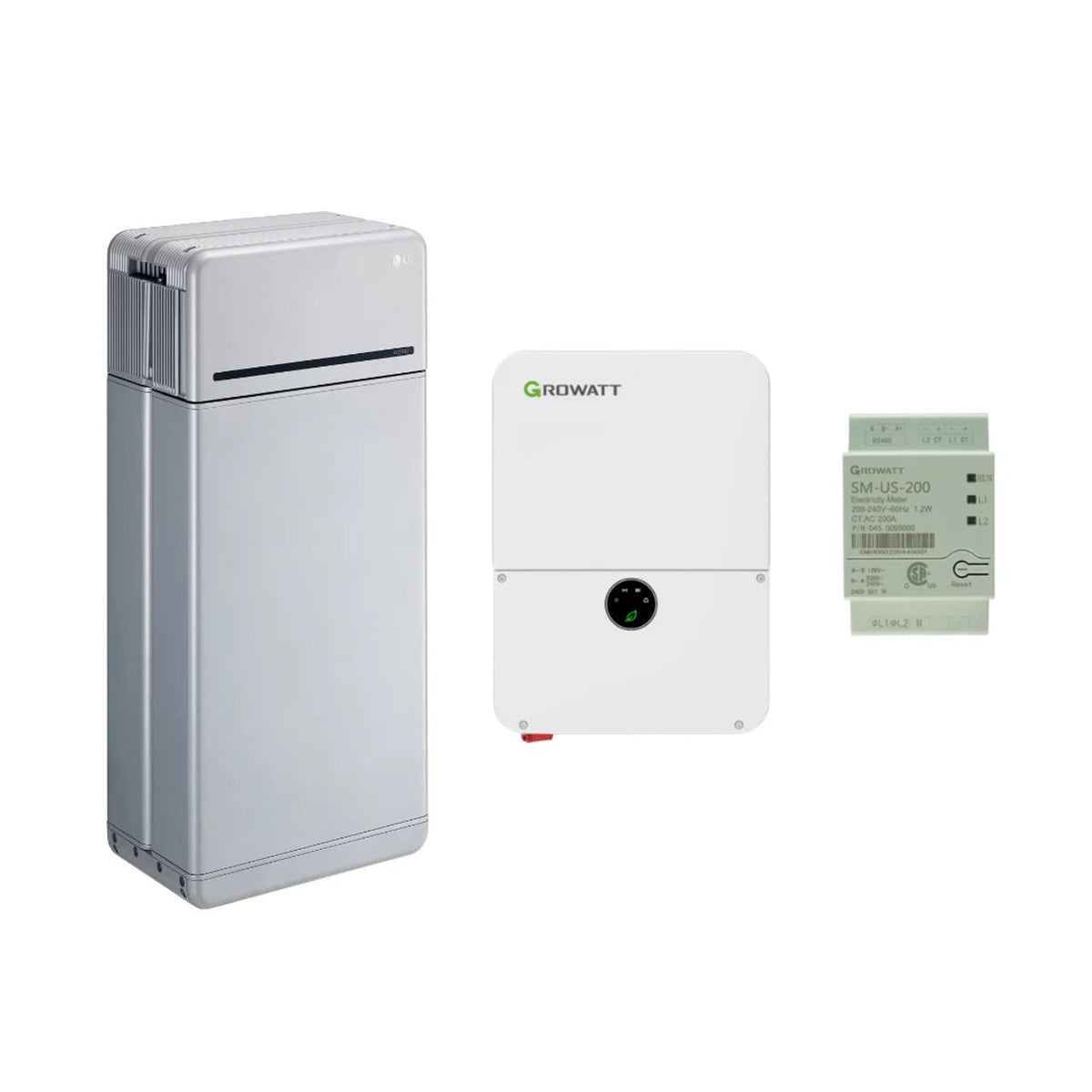

The package pairs the LG RESU 16H Prime with the Growatt MIN 7600TL-XH-US 7.6kW Grid-Tie Inverter and Growatt SM-US-200 Smart Meter.
The system can manage when energy is stored and used, helping homeowners shift electricity consumption based on solar production and utility-rate schedules when properly configured.
Multiple independent MPPTs help manage solar production across compatible PV array configurations, including installations with different roof orientations or array characteristics.

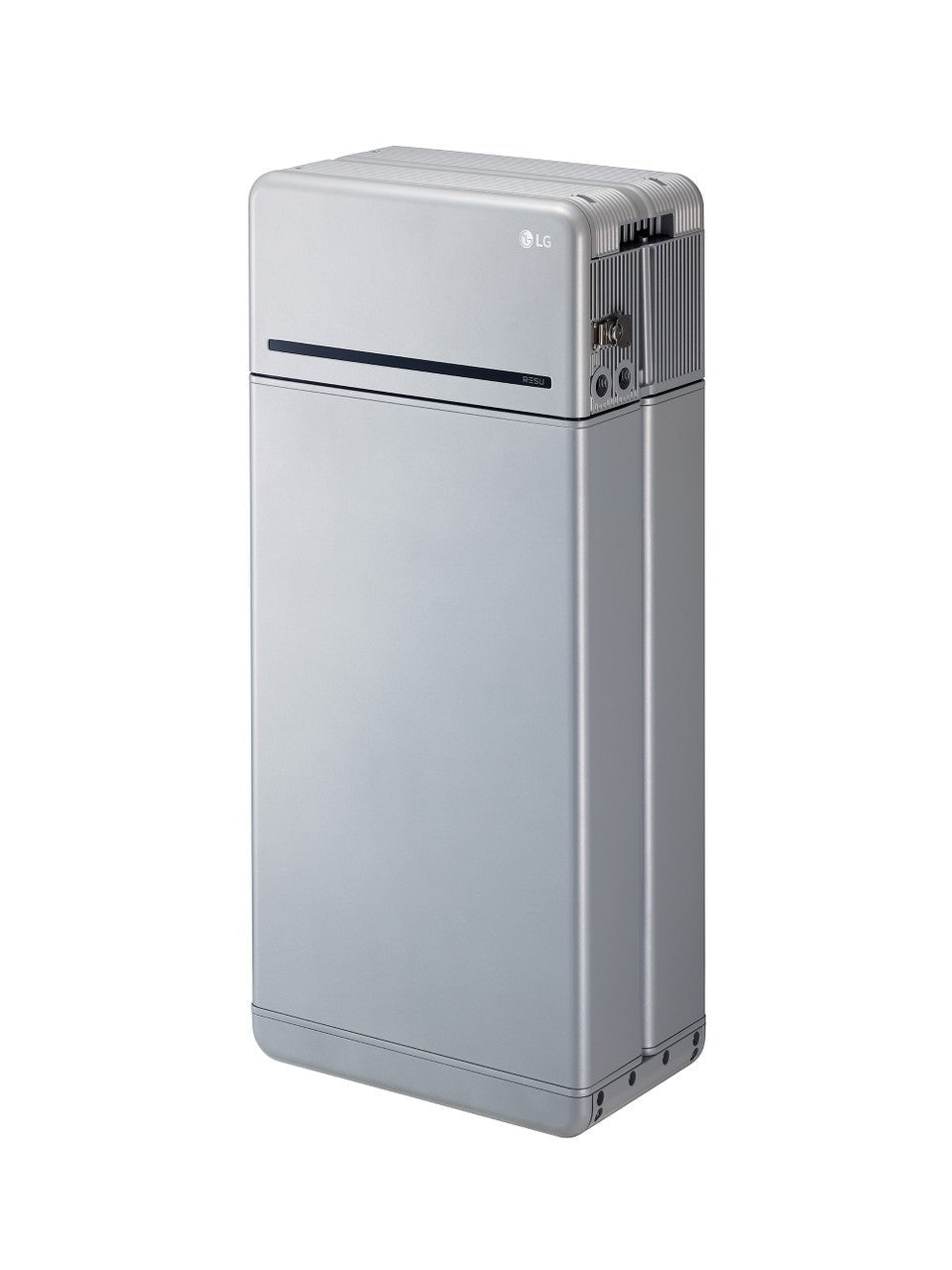

LG RESU 16H Prime 16kWh High-Voltage Battery

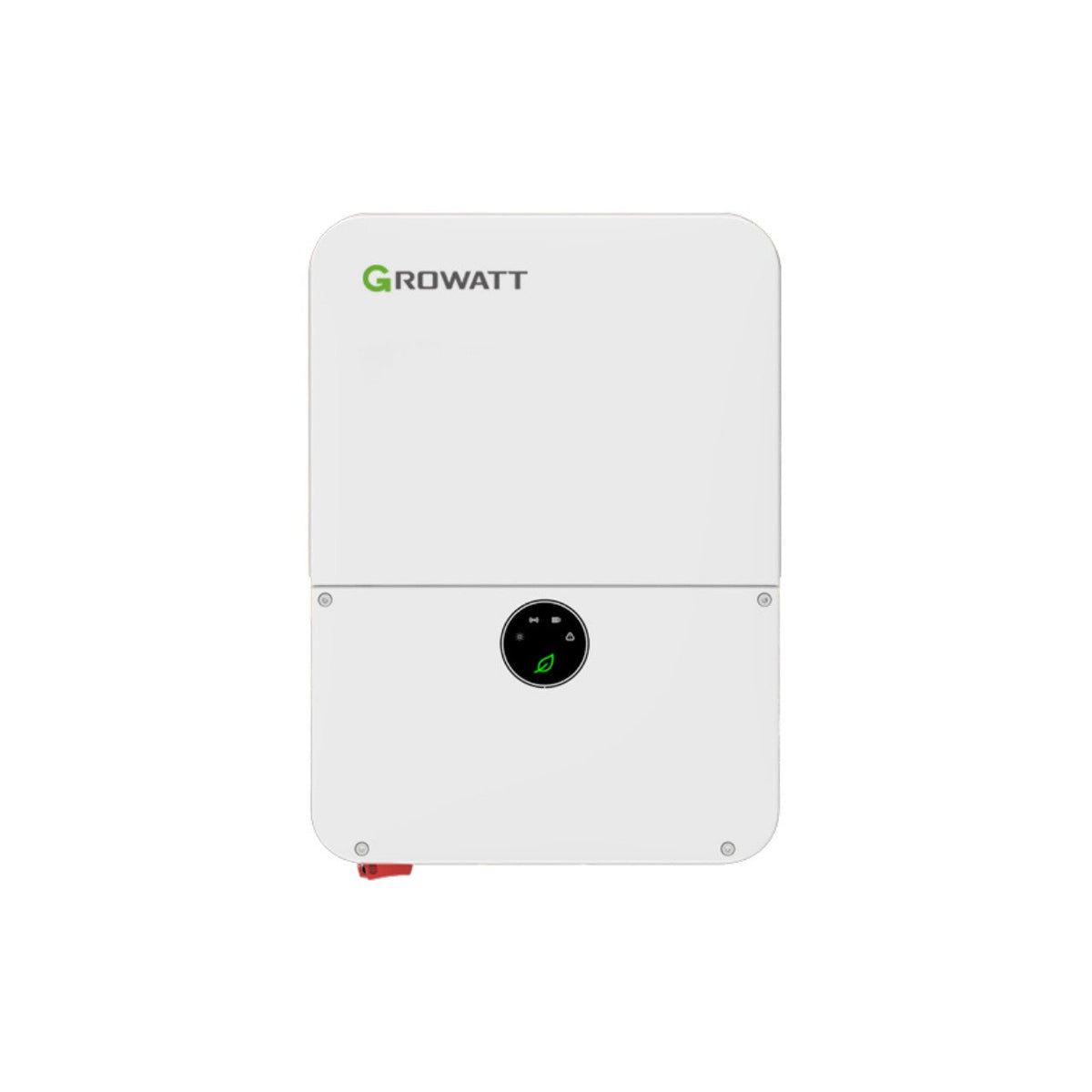

Growatt MIN 7600TL-XH-US Grid-Tie Inverter
Growatt SM-US-200 Smart Meter
Support for compatible energy-management functions
Expansion capability for a second compatible LG 16H Prime battery
The 7.6kW configuration does not provide backup power when the utility grid goes down.
When grid power is lost, this configuration shuts down as required by its grid-tied operating design.
If maintaining power during outages is one of your primary goals, select the backup configuration instead.
Choose the 11.4kW configuration when outage protection is a primary part of your energy-storage plan.

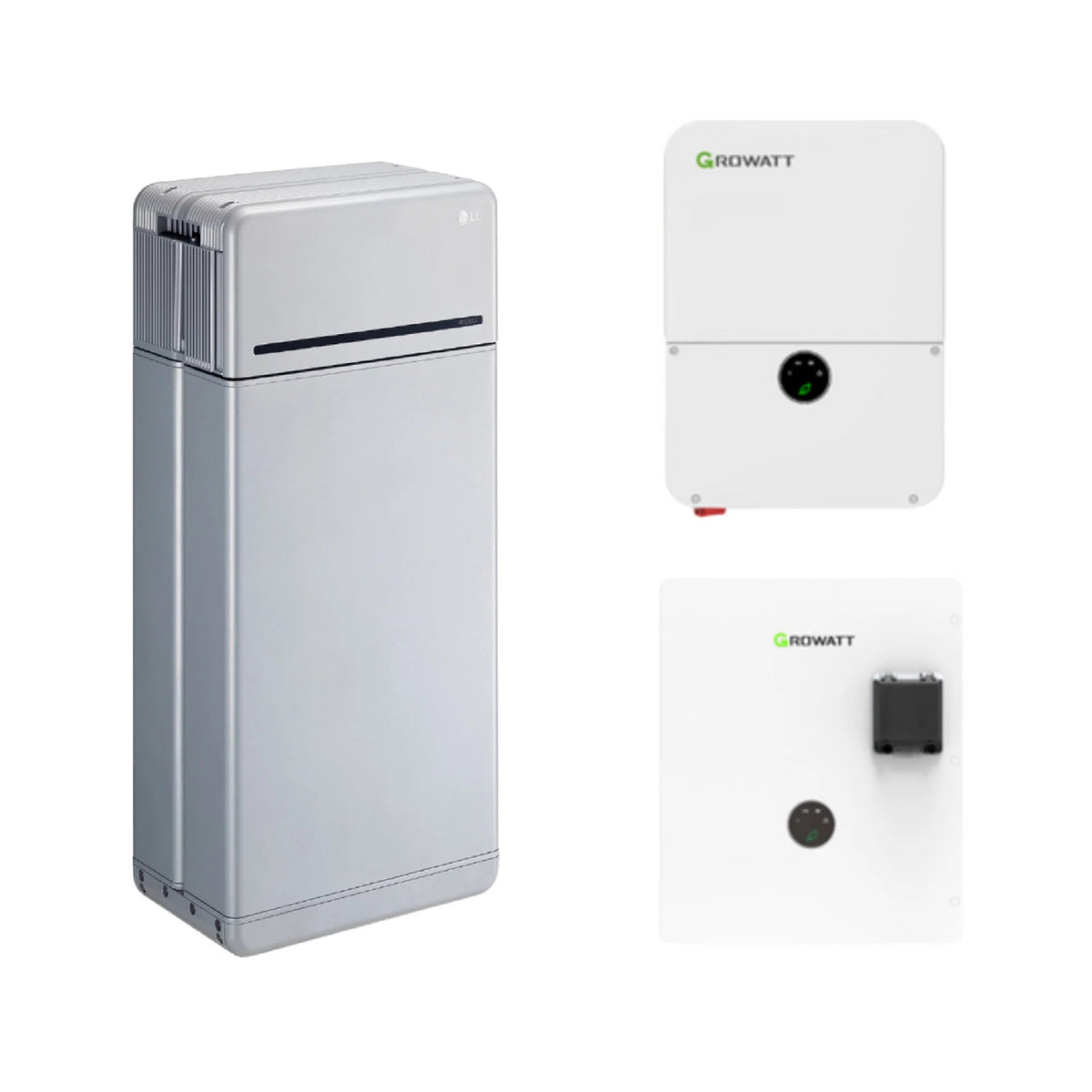

This package pairs the LG battery with the Growatt MIN 11400TL-XH-US Inverter and Growatt SYN 200-XH-US Automatic Transfer Switch.
The transfer equipment enables the system to transition into backup operation when utility power is unavailable, subject to proper system design, installation, electrical loads, and available stored energy.
LG RESU 16H Prime 16kWh High-Voltage Battery
Growatt MIN 11400TL-XH-US Inverter
Growatt SYN 200-XH-US Automatic Transfer Switch
Backup-power capability
Generator-integration capability
Expandable battery architecture
Parallel inverter expansion capability where supported
For homeowners looking for longer-duration resilience, the backup configuration incorporates generator integration terminals.
A properly sized and compatible portable or standby generator can be incorporated into the professionally designed system to help support longer-duration operation when an outage exceeds available battery capacity.
This creates the potential for a layered backup strategy combining solar generation, battery storage, and compatible generator support.
Start with 16kWh of usable battery capacity and expand as your energy requirements grow.

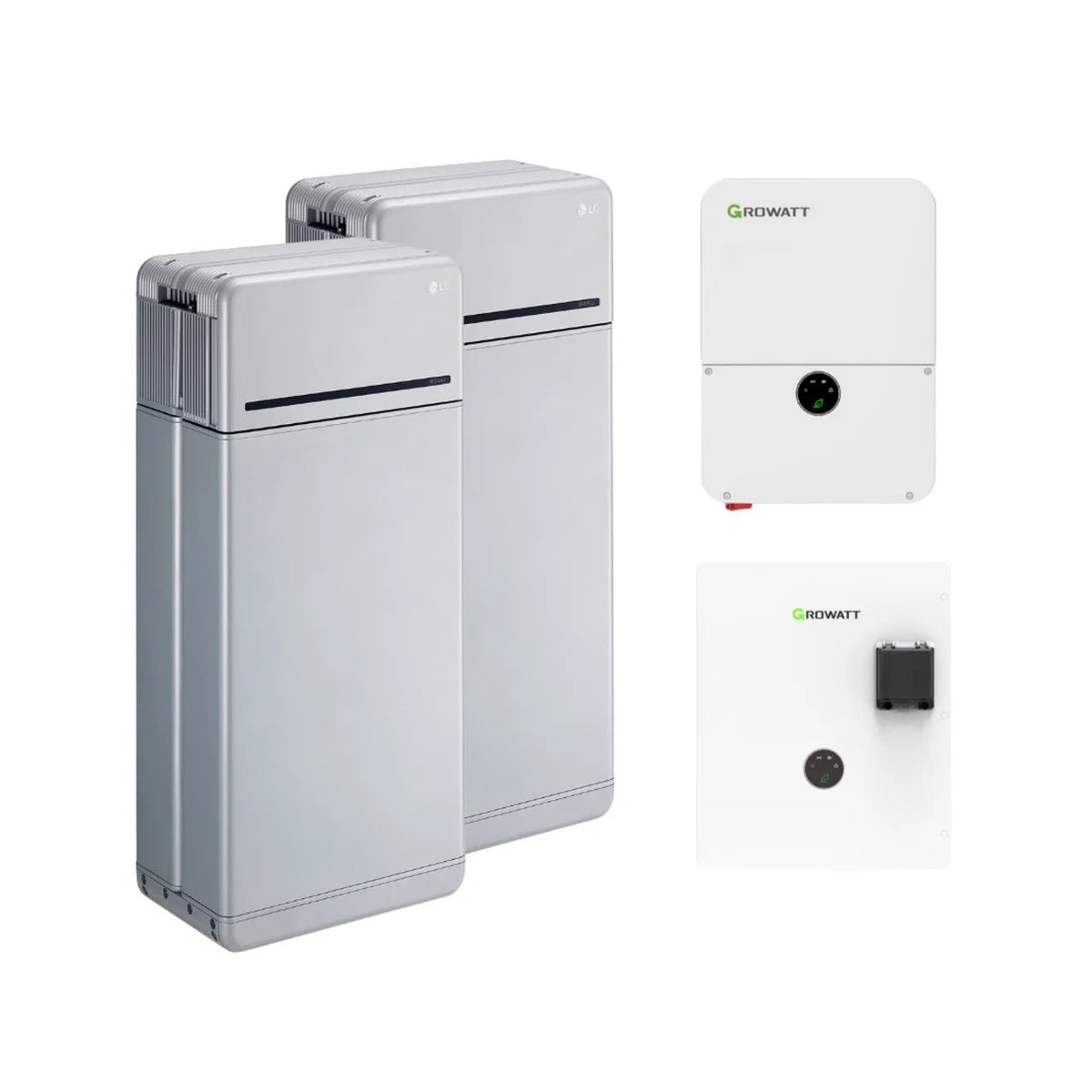

The system architecture supports compatible battery expansion, including configurations using a second LG RESU 16H Prime battery for up to 32kWh of battery capacity, subject to the selected inverter configuration and manufacturer requirements.
More advanced supported configurations may allow additional expansion when compatible inverters and batteries are installed according to Growatt and LG system requirements.
Solar panels frequently produce their most energy during hours when household consumption is relatively low.
Battery storage gives you another option.
Instead of relying solely on immediate solar consumption, compatible configurations can store available solar energy for use later.
That stored energy can then support household consumption when solar production falls, subject to system settings and available battery capacity.
For homeowners whose utility offers time-of-use electricity rates, compatible system settings can help shift when grid energy is consumed.
The system can be configured around charging and discharging schedules designed to reduce reliance on higher-priced grid electricity during designated peak-rate periods.
Actual savings depend on your utility tariff, solar production, household consumption, system configuration, and operating strategy.
The 7.6kW package includes the Growatt SM-US-200 Smart Meter, supporting compatible monitoring and export-management functions.
Where required by system design or utility interconnection agreements, export controls can be configured to manage the amount of energy delivered back to the utility grid.
Requirements vary by utility and jurisdiction, so all interconnection settings should be configured as part of the professional installation and commissioning process.
The LG RESU 16H Prime uses a high-voltage architecture rather than the lower-voltage design found in some residential battery systems.
Paired with a compatible Growatt inverter, this creates an integrated residential solar-storage platform designed around efficient energy conversion, management, and storage.
Choose the 7.6kW Grid-Tie Package if your priority is:
Solar self-consumption, time-of-use management, export control, and battery storage—and you do not require power during a grid outage.
Choose the 11.4kW Backup Package if your priority is:
Battery-backed operation during utility outages, automatic transfer functionality, and the ability to integrate a compatible generator into a professionally designed backup system.
Battery: LG RESU 16H Prime
Usable Capacity: 16kWh
Architecture: High Voltage
Operating Voltage: Approx. 400V
Battery Chemistry: Lithium-Ion
Battery Management: Integrated BMS
Expansion: Compatible configurations support additional battery capacity
Option 1: Growatt MIN 7600TL-XH-US – 7.6kW Grid-Tie
Meter: Growatt SM-US-200 Smart Meter
Outage Backup: No
Option 2: Growatt MIN 11400TL-XH-US – 11.4kW
Transfer Equipment: Growatt SYN 200-XH-US
Outage Backup: Yes, when properly designed and installed
Generator Integration: Supported configuration
This is high-voltage residential energy-storage equipment and should be designed, installed, commissioned, and interconnected by appropriately qualified professionals.
System performance and backup capability depend on numerous factors including electrical service, household loads, solar-array design, utility requirements, local codes, battery configuration, inverter configuration, and installation.
Permits, inspections, utility approval, and other requirements may apply.
The LG RESU 16H Prime + Growatt Bundle gives homeowners two distinctly different paths.
Choose intelligent grid-connected energy management when your goal is maximizing how you use solar and stored energy.
Or choose the backup configuration when keeping your home powered during utility outages is part of the plan.
Start with 16kWh of usable LG battery storage and build a residential energy system designed around the way you want to produce, store, and use electricity.
